Description

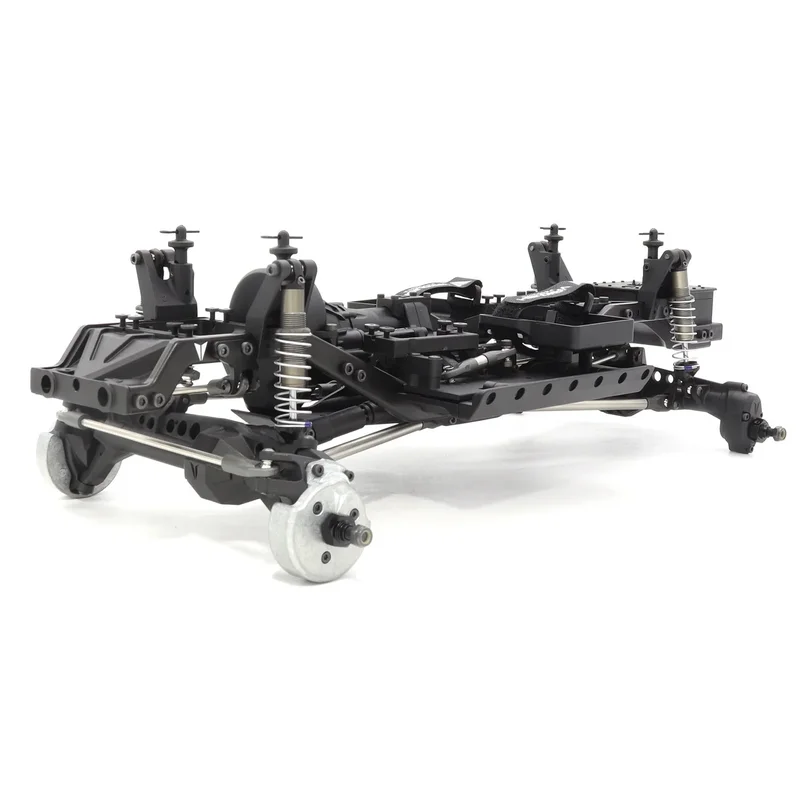

The VS4-10 Builders Kit with portal axles offers premium performance and scale detail, featuring a VFD transmission, F10 axles, and steel C-channel chassis.
Required To Run
- Assembly of kit
- 540 Sized Motor, ESC, Servo
- Transmitter and compatible receiver
- Battery and charger
- Body and Paint
- 1.9 Tires and Wheels
- Tools
Features
- F10 portal axles offer high clearance, 49° steering, and brass inserts for strength
- VFD Twin transmission with selectable 6.5% or 46% overdrive and 3-position dig
- Incision S8E 80mm shocks with aluminum bodies and dual X-ring seals
- Steel C-channel chassis with molded crossmembers and integrated mounts
- ISD10 driveshafts with CV-style joints for smooth articulation
- Brass axle tube inserts and knuckle weights improve traction and balance
- Includes shock oil, grease, threadlock, and build tools for easy assembly
Specifications
- 5.25:1 Axle Gear Ratio
- 15T Pinion
- 52T Spur Gear
- Overall Width Hex to Hex – 200mm (7.87”)
- Wheelbase: 313mm (12.3″)
- Overall Front Ratio (Standard 6.5% OD): 53.7:1
- Overall Front Ratio (High 46% OD): 35.8:1
- Overall Rear Ratio: 57.2:1
What’s In The Box
- VS4-10 Builders Kit with Portal Axles
- Manual
